Dell

Dell PERC H330 12GB/s PCIe RAID Controller - 0CG2YM

SKU:
DELL 0CG2YM
MPN:
0CG2YM
Condition:
Used
Availability:
Should Ship in 1-3 Business Days.
Shipping:
Calculated at Checkout

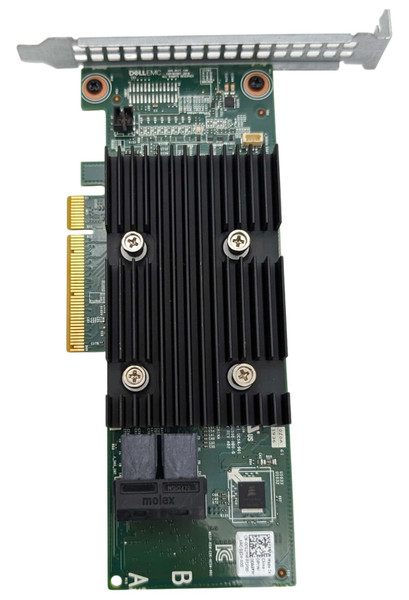

  • A top-down vertical view of a Dell PERC H330 PCIe RAID controller card against a white background. This version of the card features a green PCB with a large black heatsink and a silver mounting bracket at the top. Key Visual Details: Cooling: A large, black ribbed aluminum heatsink is centered on the board, secured by four silver spring-loaded Phillips-head screws. Connectivity: A gold-plated PCIe x8 interface edge connector is located on the left side. Two internal Mini-SAS HD (SFF-8643) ports are located at the bottom, protected by a black plastic housing labeled "molex" and "MSH2479." Identification & Markings: A white sticker at the bottom right includes a QR code and identifies the part as DP/N 0CG2YM. The full serial string is CN-0CG2YM-FCP00-9AC-01Z4-A00. Technical silk-screening on the board includes the DellEMC logo at the top and model UCSA-901, REV A02 near the center. Large white letters "A" and "B" are printed near the bottom corners of the PCB. Hardware: The top features a full-height silver metal bracket with a grid of ventilation holes, secured to the PCB with two black screws.
  • A vertical, top-down view of the underside (back) of a Dell PERC H330 PCIe RAID controller card. The green printed circuit board (PCB) is shown against a plain white background. Key Visual Details: Backplate: A large, silver metal rectangular plate is centered on the board, secured by four flush rivets. A small white label on this plate contains technical text in Chinese and English, including the model UCSA-901 and power ratings of 3.3Vdc and 12Vdc. Circuitry and Chips: * The board is densely populated with small surface-mount components (resistors and capacitors). At the bottom left, a large square black integrated circuit (IC) is visible, labeled with "Spansion" branding. To the right of this chip are several smaller silver and black components and organized solder points labeled with letters like "A" and "B". Interface: On the right side, the gold-plated pins of the PCIe x8 edge connector are visible. Mounting: The silver metal mounting bracket is at the top, shown from the rear, revealing the two screws that attach it to the green PCB. Markings: Various white silk-screened labels designate component locations (e.g., C, R, and U prefixes followed by numbers) and grid markings across the green surface.
$29.99
Current Stock: 46

Sold Out

Frequently bought together:

Description

The Dell PERC H330 (P/N: 0CG2YM) is a versatile, entry-level 12Gb/s SAS/SATA PCIe RAID controller designed for Dell PowerEdge servers, offering robust data protection and high-speed storage connectivity. As part of the PERC 9 family, this card delivers 12Gb/s SAS performance for both HDD and SSD, suitable for cost-sensitive applications requiring reliable, internal hardware RAID.

Product Features:

12Gb/s SAS & 6Gb/s SATA Support: Optimized for 12Gb/s SAS SSDs and HDDs, while backward compatible with 6Gb/s drives.
Eight Internal Ports: Utilizes two (2) x4 Mini-SAS HD (SFF-8643) connectors, supporting up to 16 drives in RAID mode or 32 drives in non-RAID (HBA) mode.
PCIe 3.0 x8 Host Interface: Provides high-bandwidth connection to the server motherboard.
Essential RAID Levels: Supports RAID 0, 1, 5, 10, and 50.
Non-RAID Mode (Pass-through): Allows direct drive access for software-defined storage, such as SDS or ZFS environments.
4K Native Sector Support: Optimized for modern high-capacity drives.

Performance and Reliability:

LSI SAS 3008 ROC: Built on a reliable RAID-on-Chip (ROC) chipset.
Data Protection: Features Patrol Read for monitoring drives and Background Initialization.
No Cache Buffer: Unlike the H730 series, the H330 does not feature non-volatile cache (NVRAM), making it a more economical, non-caching entry-level solution.

Compatibility:

This card is designed for 13th and 14th Generation Dell PowerEdge servers, including models such as the R230, R330, R430, R530, R630, R730, R730xd, R740, R740xd, and T330.
