Dell

Dell PERC H330 12GB/s PCIe RAID Controller - 075D1H

SKU:
DELL 075D1H
MPN:
075D1H
Condition:
Used
Availability:
Should Ship in 1-3 Business Days.
Shipping:
Calculated at Checkout

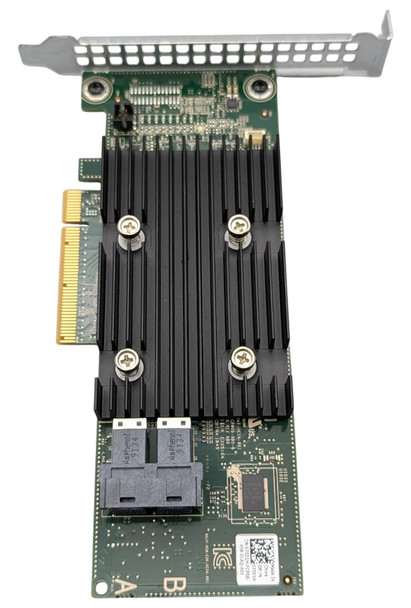

  • A top-down, vertical view of a Dell PERC H330 RAID controller card against a white background. The device is a green rectangular circuit board equipped with a large black heatsink and a silver metal mounting bracket at the top. Key Visual Components: Thermal Management: A prominent black aluminum heatsink with vertical fins covers the center of the board, held in place by four silver spring-loaded Phillips-head screws. Connectivity: * On the left side, a gold-plated PCIe x8 interface connector is visible. At the bottom, there are two black internal Mini-SAS HD (SFF-8643) ports labeled with "Amphenol." Markings and Identification: * A white sticker at the bottom right features a QR code and identifies the part as DP/N 075D1H. Large white letters "A" and "B" are printed near the bottom corners of the PCB. Technical silk-screening on the board includes model UCSA-901, REV A00, and regulatory logos like the KC mark. Hardware: The top silver bracket features a grid of square ventilation holes and two circular screw holes for securing the card to a server chassis.
  • A front-angle, eye-level shot of a Dell PERC H330 PCIe RAID controller card, focusing on the silver metal mounting bracket in the foreground. The image is set against a plain white background. Visual Details: Mounting Bracket: A full-height silver metal bracket spans the foreground, featuring a grid of rectangular ventilation holes. Heatsink: Behind the bracket, a thick, black aluminum heatsink with vertical cooling fins sits atop the green circuit board. Four silver spring-loaded mounting screws are visible on its surface. PCB Components: To the right, the gold-plated teeth of the PCIe x8 interface edge connector are visible. At the very back of the board, the top edges of two black internal SAS connectors peek out from behind the heatsink. Perspective: The shallow depth of field keeps the bracket in sharp focus while the rear components of the card slightly blur into the distance.
  • A high-resolution, close-up shot focusing on the lower section of a Dell PERC H330 RAID controller's green printed circuit board (PCB). Technical Details and Markings: Identification Sticker: A small white square label on the right side contains a QR code and identifies the product as Made in China with DP/N 075D1H. The full serial string reads: CN-075D1H-FCP00-958-01AQ-A05. PCB Printing: Directly on the green board, white text indicates the model as UCSA-901, REV A00, and a manufacturing date code of CHINA 1845. Below the sticker, the MSIP regulatory marking reads MSIP-REM-E2K-UCSA-901. Components: * To the left, the edge of a black ribbed aluminum heatsink is visible, secured by a silver spring-screw. In the center, a small rectangular black integrated circuit (IC) is surrounded by intricate gold-colored copper traces and soldering points labeled with various grid coordinates (e.g., A, B, C, D). At the bottom, one of the black internal SAS connectors is partially visible, with "Amphenol" and "9134" printed on its surface. Designations: A large capital letter "B" is printed in the bottom right corner, indicating a section or port designation on the board.
$29.99

Out of stock

Frequently bought together:

Description

The Dell PERC H330 (Model: 075D1H) is a high-performance, entry-level to mid-range 12Gb/s SAS PCIe RAID controller designed for Dell PowerEdge servers. As part of the 13th Generation PowerEdge portfolio, this controller offers reliable data protection, improved system performance, and cost-effective storage scalability. The PERC H330 is an ideal solution for file servers, web servers, and entry-level database applications requiring reliable RAID protection without the cost of high-end, cache-heavy controllers (it acts as a "value" controller, generally operating without a dedicated non-volatile cache).

Product Features & Capabilities:

12Gb/s SAS Interface: Delivers twice the data transfer rate of 6Gb/s SAS, supporting high-speed SAS and SATA hard drives (HDD) and solid-state drives (SSD).
RAID Support: Supports RAID levels 0, 1, 5, 10, 50, and JBOD, providing flexible options for balancing performance and data redundancy.
PCIe 3.0 Host Interface: Features a PCIe 3.0 x8 interface to ensure high bandwidth for data-intensive applications.
Dell Part Number 075D1H: Identifies this as a genuine Dell OEM part, often used as a low-profile, internal controller in PowerEdge R-series (rack) and T-series (tower) servers.
Virtual Disk Management: Offers advanced support for online capacity expansion, online RAID level migration, and non-disruptive management.

Compatibility:

Typically compatible with 13th Generation Dell PowerEdge servers (e.g., R330, R430, R530, R630, R730, T330, T430, T630).
