Dell

Dell 1.8TB 10K SAS 12Gb/s 2.5" SFF Enterprise Hard Drive - AL14SEB18EQY

SKU:
DELL AL14SEB18EQY
UPC:
5711783354313
MPN:
AL14SEB18EQY
Condition:
Used
Availability:
Should Ship in 1-3 Business Days.
Shipping:
Calculated at Checkout

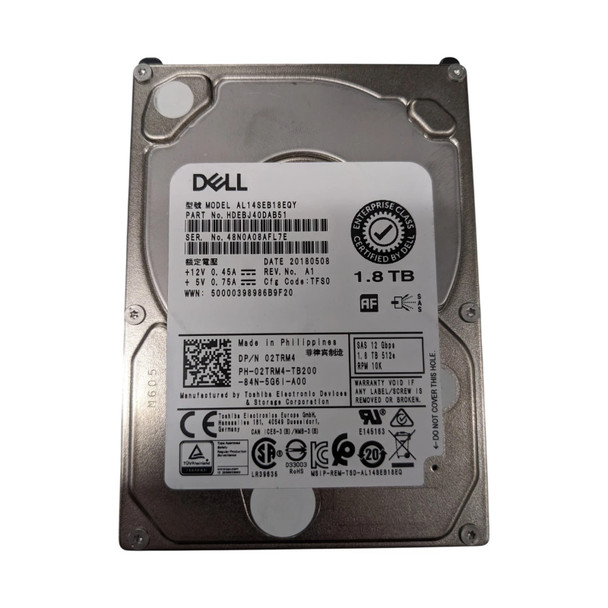

  • A top-down, full-frame studio shot of the front of a Dell 1.8TB 10K SAS 2.5-inch SFF Enterprise Hard Disk Drive. The drive features a silver metallic casing with a large white information label covering the majority of the top surface. Key Information on Label: Branding: A bold black Dell logo is at the top left, with an "Enterprise Class Certified by Dell" seal on the right. Model & Part Numbers: Model AL14SEB18EQY, Dell Part Number (DP/N) 02TRM4, and Model Number HDEBJ40DAB51. Specifications: Capacity is listed as 1.8 TB. Other specs include SAS 12 Gbps, 10K RPM, and 512e sector format. Manufacturing Details: Manufactured by Toshiba Electronic Devices & Storage Corporation in the Philippines. The manufacture date is 2018-05-08. Power Rating: +12V 0.45A and +5V 0.75A. Regulatory Logos: The bottom of the label contains numerous certification symbols, including CE, UL, TUV Rheinland, and RCM.
  • A top-down, full-frame studio shot of the underside of a Dell 1.8TB 10K SAS 2.5-inch SFF Enterprise Hard Disk Drive. The drive features a prominent blue printed circuit board (PCB) that covers most of the surface, with a black metal section visible at the bottom. Key Features and Details: PCB Layout: The blue PCB is densely populated with intricate copper traces and numerous small gold-colored solder points. There is a small white square sticker with a data matrix code and the text "04ED" in the lower-center of the board. Some clear adhesive residue is visible on the surface of the PCB. Connectors: At the top edge, the gold-plated SAS interface pins are clearly visible, including the integrated power and data segments characteristic of Serial Attached SCSI drives. Mechanical Components: The drive’s silver metallic chassis is visible around the edges, secured by silver Torx screws at the corners. A black metal baseplate is located at the bottom, featuring a circular silver indentation and some minor scuffing or adhesive residue. Markings: A small alphanumeric code, "G3B26A," is printed in white on the upper-left corner of the PCB.
$59.99
Current Stock: 4

Sold Out

Frequently bought together:

Description

This high-performance Dell 1.8TB 10K SAS 12Gb/s 2.5" SFF Enterprise Hard Drive (Dell Part Number: 2TRM4, Model: AL14SEB18EQY) is designed for mission-critical server environments. Part of the Toshiba AL14SEB series, this drive offers a balanced combination of high capacity, enterprise-grade reliability, and fast rotational speeds, making it an ideal choice for data centers and high-density storage arrays.

Product Specifications:

This drive is engineered for 24/7 operation in enterprise hardware, featuring the following core specs:

Capacity: 1.8 TB
Rotational Speed: 10,000 RPM (10K)
Interface: SAS 12Gb/s (Serial Attached SCSI)
Form Factor: 2.5-inch Small Form Factor (SFF)
Buffer/Cache: 128 MB
Data Transfer Rate: Up to 1200 MB/s (Interface speed)
Sector Format: 512e (Advanced Format)

Performance and Reliability:

The AL14SEB18EQY is built to handle heavy random-read/write workloads. Key features include:

12Gb/s SAS Interface: Provides double the data throughput of older 6Gb/s SAS drives, reducing latency and bottlenecks in high-traffic servers.
Persistent Write Cache (PWC) Technology: Enhances data integrity and performance during sudden power-loss events.
Enterprise Endurance: Rated for a 2.0 million hour Mean Time Between Failure (MTBF), designed for the rigorous demands of Tier-1 storage applications.

Compatibility and Form Factor:

As a Small Form Factor (SFF) drive, the 2TRM4 is designed to fit into 2.5-inch drive bays or 3.5-inch hybrid trays. It is commonly used in Dell PowerEdge servers and PowerVault storage arrays, including:

PowerEdge R-Series: R430, R630, R730, R730xd, R830, R930
PowerEdge T-Series: T430, T630
PowerVault Arrays: MD1220, MD1420, MD3420
