The Datalogic PowerScan PM9600-DKHP910RK10 is an ultra-rugged, high-performance industrial handheld barcode scanner kit designed to excel in demanding operational environments such as manufacturing, warehousing, logistics, and transportation. Featuring a built-in 1.8-inch display and a 16-key keypad, this configuration enables advanced data entry and real-time operator feedback directly on the shop floor.
This cordless model utilizes Datalogic's proprietary STAR Cordless System™ (910 MHz narrow-band radio) to ensure reliable wireless mobility free from Wi-Fi network interference. To eliminate common points of failure, it features contact-free inductive wireless charging, removing the risk of dirty, bent, or broken battery pins over time.
Product Features:
High-Performance 2D Area Imager: Delivers snappy omnidirectional scanning of 1D, 2D, stacked, and postal codes, including poorly printed or damaged labels.
Integrated Display & Keypad: Features a 1.8-inch OLED display screen and a full 16-key keypad for immediate data verification and manual inputs.
STAR Cordless System (910 MHz): Provides narrow-band RF wireless communication optimized for large-scale enterprise environments.
Ultra-Rugged Durability: Built to withstand up to 50 drops from 2.5 meters (8.2 feet) onto concrete and rated at IP65 and IP67 for complete dust and water resistance.
Inductive Charging Technology: Contactless wireless charging extends device longevity and minimizes cradle maintenance.
Operator Feedback: Includes a loud beeper, vibration, and Datalogic’s signature 3GL™ (3 Green Lights) technology for positive-read confirmation under any lighting or noise level.
Product Specifications:
Scan Engine: High-Performance (HP) 2D Area Imager
Connectivity: Cordless RF (910 MHz narrow-band) / Base Station USB interface
Display / Keypad: 1.8" Screen / 16-Key Keypad
Battery Capacity: 3350 mAh Lithium-Ion (Removable)
Drop Resistance: Up to 2.5 m / 8.2 ft onto concrete
Environmental Sealing: IP65 and IP67 dust and water protection
Operating Temp: -4°F to 122°F (-20°C to 50°C)
Dimensions: 7.8" H x 3.1" W x 5.5" L

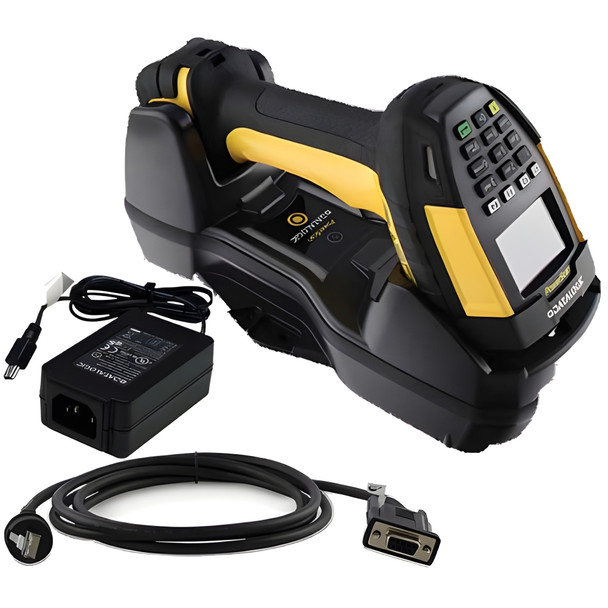

Kit Contents:
This comprehensive system includes all necessary components for standard out-of-the-box deployment via USB interface:
(1) PowerScan PM9600 Barcode Scanner (PM9600-DKHP910RB)
(1) BC9600 Base Station/Charger (BC9630-910)
(1) USB Type-A Straight Cable, 2m (CAB-552)
(1) Power Supply (8-0935)
(1) US Power Cord (6003-0941)
