Maximize your frontline throughput and minimize operator fatigue with the Datalogic PowerScan PD9130-K1 Industrial USB Corded 1D Linear Imager Kit. Built specifically for high-volume, rugged industrial environments—from manufacturing floors to busy logistics warehouses—this corded 1D linear imager delivers enterprise-grade performance that outpaces traditional laser scanners.

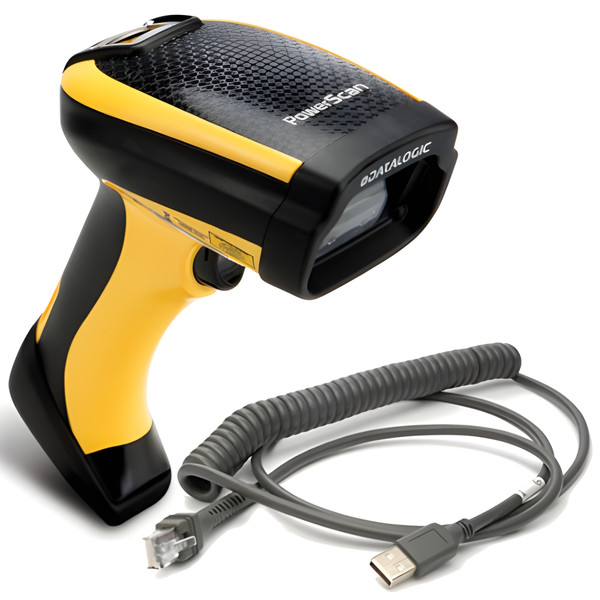

This complete all-in-one kit includes the industrial-grade PD9130 scanner and a matching USB interface cable, ensuring out-of-the-box compatibility and effortless deployment.
Product Features:
Innovative Green Aiming Line: Combines the crisp, sharp definition of a classic laser beam with the advanced decoding speed of a modern linear imager. The green scanning line is highly visible yet designed to minimize eye strain during intensive, long-shift scanning.
3GL™ (Three Green Lights) Feedback: Never miss a confirmation. Datalogic’s patented feedback system utilizes dual "Good Read" LEDs on the top cap and a direct "Green Spot" projected onto the barcode itself for clear, multi-angle confirmation in loud or poorly lit environments.
Built for Extreme Conditions: Engineered with an IP65 rating against dust and water intrusion, this ultra-rugged scanner withstands up to 50 drops from 6.6 feet (2.0 meters) onto solid concrete. It operates flawlessly in extreme temperatures ranging from -4°F to 122°F (-20°C to 50°C).
Ergonomic, Well-Balanced Design: Featuring an optimized form factor and balanced weight distribution, the PD9130 maintains user comfort during fast-paced, scan-intensive workflows. A built-in tether hook is included for suspended overhead workstations.
Simple Enterprise Configuration: Fully compatible with Datalogic Aladdin software, allowing IT managers to effortlessly program, deploy, and customize scan behaviors via an intuitive user interface.
Product Specifications:
Scanner Type: Corded 1D Linear Imager
Interface: USB (Kit includes 1 x USB Type-A external cable)
Symbologies Supported: All standard 1D linear codes (including GS1 DataBar, UPC/EAN, Code 39, Code 128, Codabar, Interleaved 2 of 5, Code 93)
Environmental Protection: IP65 (Water and particulate sealing)
Drop Resistance: Withstands 50 drops from 6.6 ft / 2.0 m to concrete
Operating Temp Range: -4 °F to 122 °F / -20 °C to 50 °C
Dimensions: (L x W x H) 8.0" x 3.0" x 4.5"
Weight: 11.9 oz
Color: Industrial Yellow / Black
Ideal Applications:
Warehouse & Logistics: Shipping/receiving, cross-docking, and high-density inventory counts.
Manufacturing: Work-in-progress tracking, component verification, and quality control.
Back-Office Administration: Heavy-duty asset management, order fulfillment, and bulk packaging validation.
