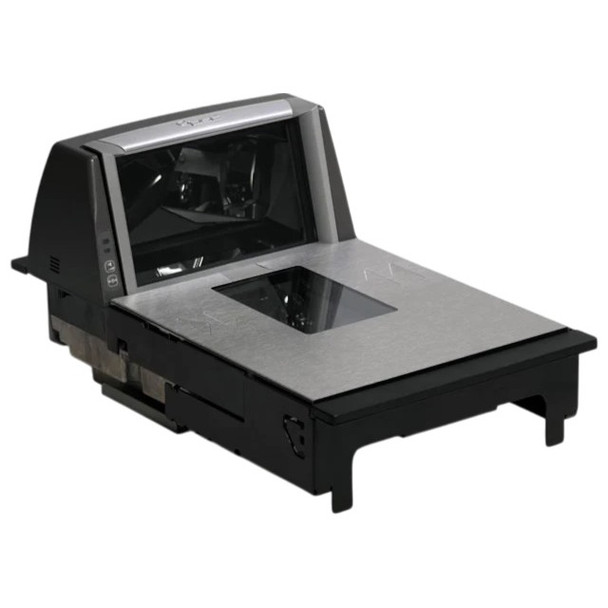

PSC / Datalogic Magellan 8204 In-Counter Bi-Optic Scanner Scale - Long Length Platter

Maximize checkout throughput and eliminate cashier bottlenecks with the PSC / Datalogic Magellan 8204, a high-performance in-counter bi-optic barcode scanner and integrated scale engineered for demanding, high-volume retail environments. Designed specifically for full-size supermarket checkout lanes, hypermarkets, and wholesale clubs, the Magellan 8204 features aggressive 360-degree, 5-sided scanning to read 1D and stacked barcodes quickly on the first pass, regardless of label orientation.

This configuration features the full-length (20.0-inch) chassis and includes the genuine heavy-duty stainless steel All-Weighs scale platter with an integrated horizontal scan window. The low-profile under-counter design fits comfortably into standard cashwrap cutouts while accommodating both seated and standing cashier workstations.

Product Features:

Aggressive 360° 5-Sided Scanning: Projects dense omnidirectional scan patterns across five optical planes to capture standard, truncated, or hard-to-read barcodes instantly.
Integrated All-Weighs Scale Platter: Features a durable, brushed stainless steel weigh platter designed to produce accurate weight measurements even when oversized produce rests against the vertical bonnet.
Long Chassis Form Factor: Full 20-inch length provides an expansive weighing surface and fits legacy and standard North American supermarket checkstand cutouts.
FirstStrike Advanced Decoding: Proprietary decoding algorithms boost read rates on poorly printed, wrinkled, or damaged barcodes to keep checkout lanes moving.
OmegaTek Productivity Technology: Advanced optical design minimizes operator wrist twisting and repetitive motion strain for seated or standing cashiers.
Modular Serviceability: Built for simplified lane maintenance, quick glass replacement, and minimal POS downtime.

Technical Specifications:

Model: PSC / Datalogic Magellan 8204 (8200 Omega Series)
Form Factor: Long In-Counter Bi-Optic Scanner / Scale
Scan Technology: 5-Sided, 360° Omnidirectional Laser Scanning
Platter Type: Brushed Stainless Steel All-Weighs Platter with Optical Glass Window
Scale Capacity: 30.0 lbs / 15.0 kg (0.01 lb / 0.005 kg increments)
Symbologies Supported: 1D Barcodes, UPC/EAN, GS1 DataBar (RSS), Stacked Codes
Host Interfaces Supported: RS-232 Serial, IBM 468x/469x, OEM USB, OCIA
Dimensions (W × L × D): 11.5" × 20.0" × 4.0" below counter (29.2 cm × 50.8 cm × 10.0 cm)
Tower Height (Above Counter): 7.0" (17.8 cm)
