Datalogic

Datalogic Magellan 9804 Bi-Optic In-Counter Scanner / Scale - Medium Length - No Flange

SKU:
DATALOGIC 9804 MEDIUM NO FLANGE
MPN:
9800i
Condition:
Refurbished
Availability:
Should Ship in 3-5 Business Days.
Shipping:
Calculated at Checkout

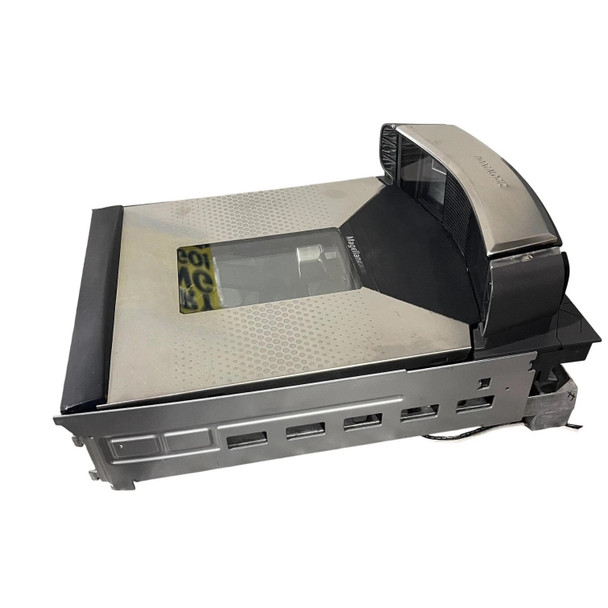

  • A high-angle right side view of the Datalogic Magellan 9804 medium-sized bi-optic scanner scale, showcasing the flush stainless steel platter with a dot-matrix texture pattern and the underlying metal chassis frame with side mounting slots.
  • A high-angle left side view of the standalone Datalogic Magellan 9804 in-counter POS scanner scale, displaying the textured metal platter surface, integrated glass scan window, and the curved vertical scanner bonnet tower.
  • Direct overhead top-down view of the Datalogic Magellan 9804 bi-optic grocery scanner scale, highlighting the medium-length flush stainless steel weighing platter, central horizontal scanning window, and the silver brushed metallic bonnet cap.
  • Educational product photo of a Datalogic scanner scale with red circles and X marks drawn over the front and rear outer black plastic lip frames, accompanied by explanatory text reading No Flange Meaning - These will not be on the Scanner Scales.
  • An overhead view looking inside an open Datalogic Magellan 9800i series scanner scale housing with the top platter lifted, revealing the internal mirror arrays, dual blue glass-securing tabs, and the manufacturer model label printed with Magellan 9800i.
  • Underside view of the Datalogic Magellan interface board being held up, showcasing a clear breakdown diagram and matching physical connections for Power, Remote Display, USB, Host Port, TDR, Scale Host, EAS, AUX, and Image Port.
  • A back-end profile view of the Datalogic Magellan in-counter scanner scale, showing the physical interface panel with all connection ports exposed underneath the main plastic hood extension, isolated on a white background.
$599.99
Current Stock: 31

Sold Out

Frequently bought together:

Description

Bring multi-plane digital imaging to your busiest checkout lanes with the Datalogic Magellan 9804 (Medium Length Configuration). Driven completely by high-performance digital imaging technology, the 9804 delivers unmatched throughput for reading both 1D and 2D barcodes across all reading planes seamlessly. This Medium Platter configuration is optimized for standard checkout counters and self-checkout cabinetry layouts where space is premium, while its No Flange (Shelf Mount) design sits completely flush into counter drop-ins without an overlapping perimeter frame lip. Complete with a premium RS232 Serial host communication cable, it offers rugged, noise-free transaction processing stability for enterprise POS terminals.

Product Features:

Advanced Six-Sided Digital Imaging: Replaces traditional laser mirrors with full digital imagers across all viewing angles, maximizing reading speed for printed paper labels, digital smartphone coupons, and damaged GS1 barcodes.
Medium-Length Form Factor: Designed for space-conscious, high-volume checkout zones. Provides a robust scanning footprint without occupying unnecessary counter length.
Flush No-Flange (Shelf Mount) Design: Features a straight-walled, flange-less body profile engineered to sit precisely on internal counter support rails, creating a smooth, obstruction-free transition across your checkout counter.
Seamless RS232 Integration: Packaged with an enterprise-shielded RS232 DB9 serial host connection cable to eliminate data interference and drop-outs.
Low-Bonnet Ergonomics: Designed with a shortened vertical bonnet height, allowing flexible positioning of customer-facing touchscreens, receipt printers, and pin pads directly behind or above the scanner.

Technical Specifications:

Brand / Manufacturer: Datalogic
Product Family: Magellan 9800i Series
Model Configuration: 9804 (Scanner & Certified Scale Combo)
Platter Form Factor: Medium Length
Mounting Profile: No Flange / Standard Shelf Mount (Sits Flush)
Scanning Engine: Full multi-plane omnidirectional digital imager
Symbologies Supported: 1D, 2D (QR Code, Data Matrix), PDF417, and Digimarc
Host Interface: RS-232 Serial (DB9 Connectivity)
Included Cable: Shielded RS232 Serial Host Communication Cable
Weighing Features: Integrated load-cell platform with ScaleSentry shrink prevention monitoring

View AllClose

Warranty Information

90-Day Limited Warranty – Refurbished Products : Your refurbished item is covered for 90 days from the purchase date against defects in materials or workmanship. If your product has a defect, we will repair or replace it at no charge. This warranty does not cover damage from accidents, misuse, cosmetic wear, or unauthorized repairs. To make a claim, contact us at ecommerce@posrg.com with proof of purchase.
