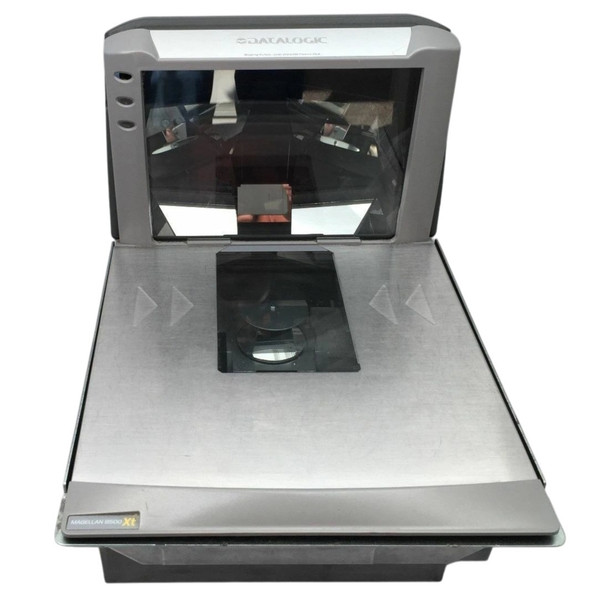

Datalogic Magellan 8500XT In-Counter Scanner / Scale - Long Version - Model 8504

The Datalogic Magellan 8500XT (Model 8504) represents the peak of high-volume, bi-optic scanning and certified weighing technology for high-throughput retail environments. Engineered as the maximum-length "Long Platter" (20-inch) configuration, this specific system combines 6-sided SurroundScan® 3D scanning technology with industry-leading scale settling times to eliminate checkout bottlenecks and reduce front-end produce loss. Paired with a dedicated RS232 Serial interface cable, this unit offers rock-solid, plug-and-play communication stability for traditional PC-based point of sale systems, legacy controllers, and server-managed checkout lanes.

Product Features:

SurroundScan® 3D 6-Sided Scanning: Operates an aggressive multi-quadrant pattern producing 6,400 scan lines per second to read barcodes seamlessly across all six angles without manual alignment by cashiers.
Patented All-Weighs® Long Platter: Features an elongated 20.0-inch weighing platform that wraps around the vertical scan window. This allows cashiers to accurately weigh oversized produce or long items without contacting static surfaces, significantly reducing produce shrink.
Ultra-Fast Scale Settling Time: Integrated Magellan scale technology drops weight stabilization to under 500 milliseconds, enabling lightning-fast weight capture per transaction.
Enterprise RS232 Serial Connectivity: Includes a premium, shielded RS232 DB9 serial connection cable designed for rugged, noise-immune data transfer directly to the host terminal or cash register.
Advanced Data Management: Supports seamless configuration and pre-formatting of barcode labels before sending the data packet to your POS software environment.

Technical Specifications:

Brand / Manufacturer: Datalogic / PSC
Product Line: Magellan 8500XT Series
Model Configuration: 8504 (Long Version, Scanner & Scale)
Dimensions (W x D x H):
Width: 11.5 in (29.2 cm)
Length: 20.0 in (50.8 cm)
Above Counter: 7.0 in (17.8 cm)
Below Counter: 5.0 in (12.7 cm)
Unit Net Weight: 26.0 lbs (11.8 kg)
Scanning Engine: Omnidirectional 64-line laser array (6,000 RPM)
Scale Capacity: 30.0 lbs Max Read Capacity / 150.0 lbs Max Static Weight
Interface Port Included: Powered RS-232 / Dedicated Host Serial Slot
Included Cable: DB-9 Female to RJ-Style Scanner Interface RS232 Cable
Decoding Support: Standard 1D codes, linear symbologies, and GS1 DataBar
