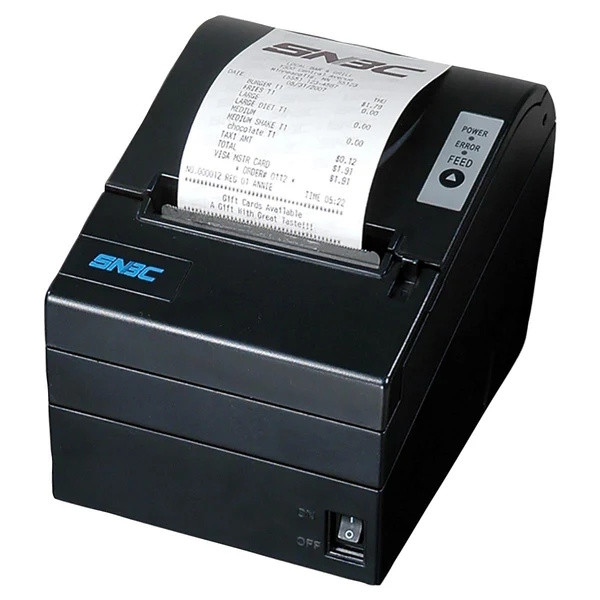

SNBC Direct Thermal POS Receipt Printer - USB - Ethernet - Serial - BTP-R880NPV

Engineered for high-volume retail, food service, grocery, and hospitality environments, the SNBC BTP-R880NPV direct thermal receipt printer provides commercial-grade throughput and long-term durability. Built with integrated Triple Interface connectivity (RS-232 Serial, USB, and Ethernet), this unit connects directly to legacy register setups, local network kitchen stations, and modern cloud-based point-of-sale systems without requiring separate interface expansion cards.

With print speeds up to 310 mm per second, a heavy-duty auto-cutter, intuitive drop-in roll replacement, and an internal liquid-deflection barrier, the BTP-R880NPV ensures uninterrupted service at the point of sale.

Product Features:

Standard Triple Interface: Factory-equipped with on-board RS-232 Serial (DB9), USB 2.0, and Ethernet (10/100 Base-T) ports for versatile local and networked installations.
Blazing-Fast Output: Delivers clear text, graphics, and high-density barcodes at print speeds up to 310 mm/second to accelerate checkout lines.
Liquid-Resistant Design: Features a built-in internal spill-deflection channel designed to protect sensitive internal electronics from accidental spills in busy kitchen or counter spaces.
High-Duty Auto-Cutter: Factory-rated for up to 2 million cuts, supporting selectable full-cut and partial-cut operations with jam-prevention mechanics.
Drop-in Paper Loading: Quick, top-access loading with an adjustable paper guide to streamline roll changes and minimize transaction pauses.
Consumable Cost Reduction: Built-in programmable paper-saving functions minimize top margins and line spacing to stretch receipt roll lifespan.
Direct Keypad Configuration: On-board control panel allows network and printer configuration directly via front buttons, eliminating the need to adjust physical DIP switches.
Universal POS Compatibility: Standard ESC/POS emulation supports legacy and modern drivers across Windows, Linux, OPOS, iOS, and Android systems.

Technical Specifications:

Product Type: Direct Thermal POS Receipt Printer
Cabinet Color: Black
Print Resolution: 203 DPI × 180 DPI
Print Speed: Up to 310 mm/second (Monochrome)
Standard Interfaces: 1 × USB 2.0, 1 × RS-232 Serial (DB-9), 1 × Ethernet (RJ-45 10/100 Base-T)
Cash Drawer Port: 1 × RJ-12 (+24VDC compulsion, controls up to 2 drawers)
Compatible Paper Widths: 58 mm, 69.5 mm, 76 mm, 80 mm, 82.5 mm (Adjustable)
Maximum Roll Diameter: 83 mm (approx. 3.27 inches)
Paper Thickness: 0.06 mm to 0.1 mm
Auto-Cutter Lifespan: 2,000,000 cuts (Full or partial cut selectable)
Command Set: ESC/POS Emulation
Supported 1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF, CODABAR
Supported 2D Barcodes: QR Code, PDF417, MaxiCode, GS1 DataBar
Memory Buffer: 64 KB Receive Buffer RAM, 128 KB Bitmap RAM, 512 KB Flash Memory
Power Requirements: External AC 100–240V adapter, 50/60 Hz, 24VDC / 2.5A output
Operating Temperature: 40°F to 114°F (5°C to 45°C)
Operating Humidity: 20% to 90% RH (Non-condensing)
Physical Dimensions: 5.75″ W × 7.62″ D × 5.31″ H (146 mm × 194 mm × 135 mm)
Product Weight: Approx. 3.75 lbs (1.7 kg)
