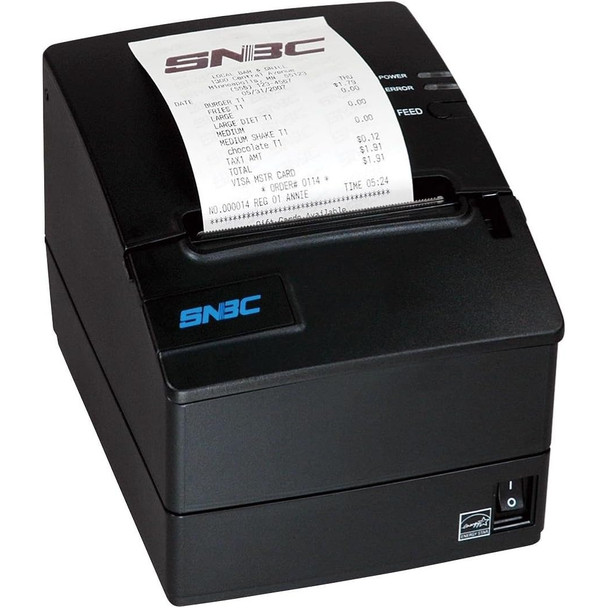

SNBC Thermal Receipt Printer - USB - Serial - Ethernet - BTP-R180II

Setting the industry benchmark for value-class POS hardware, the SNBC BTP-R180II is an affordable, fully featured 3-inch direct thermal receipt printer designed for high-traffic retail, hospitality, and restaurant environments. Engineered to combine economic pricing with enterprise-grade reliability, this workhorse printer comes standard with a triple-interface layout and rapid out-of-box setup parameters, keeping checkout lines moving swiftly without requiring costly expansion adapters.

Product Features:

Built-In Triple Interface Connection: Out of the box, the printer includes standard USB 2.0, Serial (RS-232C), and Ethernet (LAN) interface ports. This triple-connectivity standard simplifies network deployment across legacy PC registers or modern networked kitchen ticket hubs.
Rapid Print Performance: Delivers crisp, legible text and monochrome graphics at speeds up to 230 mm per second, effectively reducing customer waiting times during peak transaction hours.
Internal Anti-Spill Guard Protection: Engineered with a specialized liquid guard layout built directly into the cabinet frame, helping to channel counter spills away from sensitive internal components—making it well-suited for bars and busy restaurant server stations.
Commercial Grade Auto-Cutter: Features a heavy-duty guillotine auto-cutter rated for 1.5 million clean cuts with programmable options for full or partial receipt separation.
Hassle-Free Drop-In Loading: Designed with a spring-loaded top cover that pops open wide for simple "drop-and-print" paper roll switches, minimizing clerk downtime during busy shifts.
Drop-In Emulation Compatibility: Runs standard ESC/POS interpreter firmware, allowing for seamless plug-and-play substitution of older, more expensive Epson or Star receipt hardware without restructuring your existing POS software setup.

Ideal Applications:

Retail Checkout Lanes: Prints fast transaction slips, layout vouchers, and standard 1D/2D barcodes (UPC, QR Codes, Data Matrix).
Food & Beverage Stations: Built-in wall mounts and internal buzzer alarms make it perfect for printing clean receipts behind busy bars, cafes, and quick-service checkout counters.
Kitchen Order Requisitions: Functions seamlessly as a network routing printer for incoming kitchen line tickets.

Technical Specifications:

Brand: SNBC
Model Number: BTP-R180II
Manufacturer Part Number (MPN): 132085
Printing Technology: Direct Thermal
Print Resolution: 180 x 180 dpi
Print Speed: 230 mm / second Max
Paper Roll Width Capacity: Accepts 82.5mm, 80mm, 76mm, 69mm, and 57.5mm rolls
Maximum Roll Outside Diameter: 3.26" (83 mm)
Cash Drawer Control: 1 x RJ11 Port (Supports up to 2 drawers via +24VDC drive)
