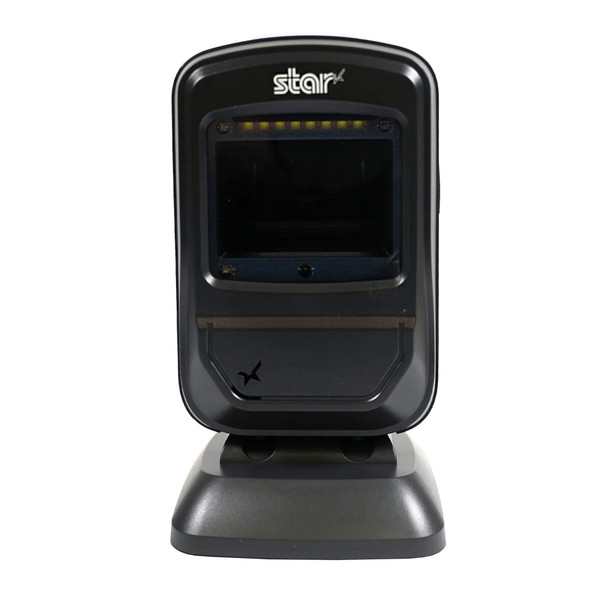

Star Micronics BSD-40U Desktop 1D/2D Barcode Scanner - 37950900

The Star Micronics BSD-40U (Part # 37950900) is a high-performance presentation imager built for busy retail counters, hospitality venues, and point-of-sale (POS) environments. Designed for stationary, hands-free operation, the BSD-40U allows cashiers and customers to swipe barcodes quickly across the wide optical scanning window, speeding up transaction times and reducing queue bottlenecks.

Equipped with a high-resolution 1280 x 800 CMOS sensor and advanced CPU parsing, this scanner reads printed 1D and 2D barcodes, digital screen codes (mobile wallets, digital coupons, loyalty apps), and driver’s licenses for age verification—all without needing manual alignment or button triggers.

Product Features:

Advanced 1D & 2D Scanning Engine: Effortlessly decodes linear barcodes (UPC/EAN, Code 128) and matrix codes (QR Code, Data Matrix, PDF417, Aztec) on paper, curved surfaces, or smartphone screens.
Integrated Driver’s License & ID Parsing: Built-in CPU parsing decodes data from government-issued IDs, making age-restricted sales and customer onboarding fast and error-free.
Plug-and-Play USB Connectivity: Works right out of the box with iOS, Android, and Windows platforms via standard USB HID/keyboard wedge emulation—no proprietary drivers required.
Seamless Star mCollection® Integration: Connects directly into Star Micronics receipt printers and POS hubs, including the mC-Print2, mC-Print3, and mPOP® systems.
Superior Motion Tolerance (2.5 m/s): Captures barcodes in motion smoothly without forcing customers or staff to pause mid-swipe.
IR Sensor Auto-Trigger: Automatically detects incoming items and activates the scan engine, keeping workflows fast even in dimly lit or dark work environments.
Durable Construction: IP52-rated sealing against dust and moisture, along with 1.2-meter drop resistance, ensures longevity in heavy retail conditions.

Technical Specifications:

Manufacturer: Star Micronics
Part Number: 37950900
Model: BSD-40U
Color: Black
Scan Pattern: Fixed Projection / Presentation Imager
Sensor Resolution: 1280 x 800 pixels
Motion Tolerance: 2.5 meters per second
Field of View: 51° Horizontal x 32° Vertical
Symbologies Supported:
1D: UPC/EAN, Code 39, Code 128, Interleaved 2 of 5, Codabar, GS1 DataBar, etc.
2D: QR Code, Data Matrix, PDF417, Micro QR, Aztec, etc.
Interface: USB (Type-A)
OS Compatibility: Windows, Android, iOS
Durability Rating: IP52 dust & drip resistance; 1.2m drop resistance to concrete
Warranty: 2-Year Limited Manufacturer Warranty (Extendable via Extend-A-Star®)
