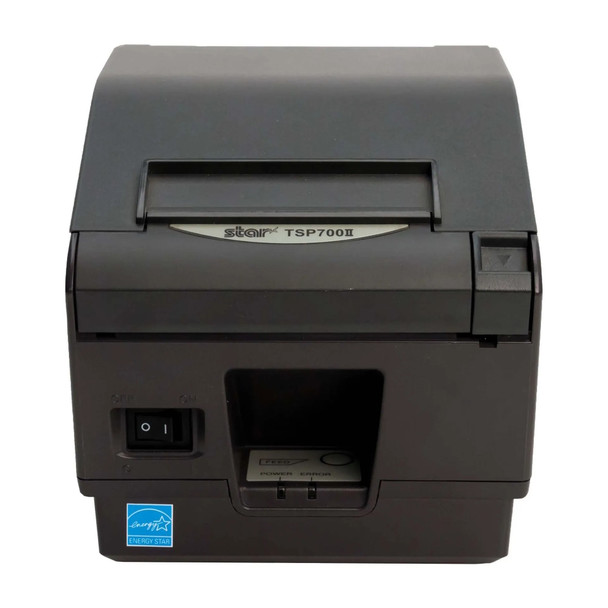

Star Micronics TSP743IIU-24 Direct Thermal Receipt & Label Printer - 39442511

The Star Micronics TSP743IIU-24 (Part # 39442511) is a high-speed, heavy-duty direct thermal printer engineered for demanding retail, grocery, lottery, hospitality, and warehousing environments. Capable of printing up to 250 mm/sec (48 receipts per minute), the TSP743II combines high throughput with exceptional versatility.

Built to handle both standard receipt paper rolls and black-mark label media up to 0.15mm thick, the TSP743II functions seamlessly as a high-volume POS receipt printer or dedicated thermal label printer. Its splash- and dust-resistant enclosure features sound and vibration dampening channels, making it ideal for busy kitchens, service counters, and harsh workspace environments.

Product Features:

Ultra-Fast 250 mm/s Print Speed: Prints 48 six-inch receipts per minute to keep lines moving quickly during peak volume.
Dual Receipt & Label Printing: Integrated black mark sensor supports 1D/2D barcodes, linerless media, and thermal label stock for delis, retail boutiques, and inventory tags.
Double-Resolution Mode: Delivers sharp 203 x 203 dpi standard resolution or up to 406 x 203 dpi for crisp company logos, promotional coupons, and graphics.
Spill and Dust-Resistant Design: Extended top cover and interior sealing channels protect sensitive internal components from liquids and airborne debris.
Heavy-Duty Guillotine Auto-Cutter: Premium cutter rated for up to 2 million cuts for jam-free, continuous operation.
Swappable Interface System: Features a standard USB Type-B interface with swappable modular cards to easily update connectivity (Ethernet, Serial, Parallel, or Bluetooth) without replacing the printer.
Versatile Mounting Options: Supports traditional horizontal counter placement or vertical wall-mounting with the included wall-mount kit.

Technical Specifications:

Manufacturer: Star Micronics
Part Number: 39442511
Model: TSP743IIU-24 GRY (TSP700II Series)
Color: Gray
Print Method: Direct Thermal
Print Speed: 250 mm/sec (48 receipts/min)
Print Resolution: 203 x 203 dpi (Double resolution mode up to 406 x 203 dpi)
Interface: USB (Type-B)
Paper Width: 80mm standard (82.5mm and 58mm supported via included paper guide)
Paper Thickness: 0.065 mm to 0.15 mm
Reliability Ratings: MCBF: 60 Million Lines
Auto-Cutter: 2 Million Cuts
Emulations: Star Line Mode, ESC/POS™
Dimensions: 5.79" W x 8.38" D x 5.79" H (147 mm W x 213 mm D x 148 mm H)
Weight: 3.86 lbs (~1.75 kg)

What's in the Box?

1x Star Micronics TSP743IIU-24 Thermal Printer (39442511)
1x Wall Mount Kit
1x Interface Cable Cover
1x 58mm Paper Guide
1x Power Switch Cover
1x Starter Thermal Paper Roll
Setup Documentation & CD Drivers

(Note: Requires 24V DC Power Supply PS60A, sold separately)
