Minuteman Endeavor 2000VA/1800W Online Double-Conversion UPS - ED2000RTXL2U

The Minuteman Endeavor LCD ED2000RTXL2U delivers enterprise-grade power protection for mission-critical IT infrastructure, network switches, data storage systems, and sensitive telecom hardware. Featuring true online, double-conversion technology with zero transfer time to battery, it isolates connected equipment from power sags, surges, brownouts, and frequency fluctuations by continuously regenerating pure, clean sine wave AC power.

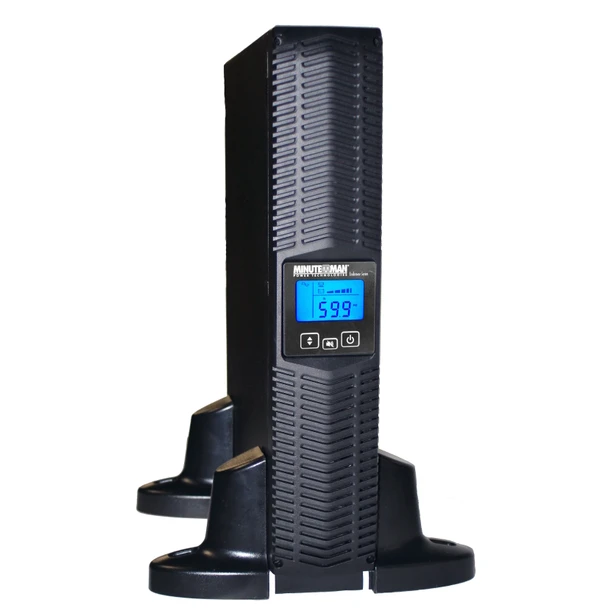

Engineered in a space-saving 2U convertible form factor, the ED2000RTXL2U easily mounts into standard 19-inch racks or operates vertically as a standalone tower. With an extended-runtime architecture (XL), this unit allows the connection of external battery modules for extended backup time during prolonged utility outages.

Product Features:

True Online Double-Conversion Topology: Eliminates switchover delays (0 ms transfer time) and delivers seamless, uninterrupted sine wave power.
High Efficiency & Density: High 0.9 power factor supplies 1800W of real power across a 2000VA capacity in a compact 2U chassis.
Controllable Outlet Banks: Features (8) NEMA 5-15/20R receptacles split across independently manageable banks, plus (1) heavy-duty NEMA L5-20R locking receptacle for critical high-draw devices.
Interactive LCD Front Panel: Real-time display for load percentage, battery charge, input/output voltage, and system diagnostics.
Hot-Swappable Batteries: Replace internal batteries on the fly without interrupting power to protected equipment.
Remote Management Ready: Features USB and RS-232 serial communication ports, compatibility with SentryHD software, and an expansion slot for optional SNMP network interface cards.
Independent Battery Bypass: Continues offering surge suppression and line conditioning even during battery service or replacement.

Technical Specifications:

Model: ED2000RTXL2U (Endeavor LCD Series)
Topology: True Online, Double-Conversion
Capacity: 2000 VA / 1800 Watts
Input Voltage / Frequency: 120 VAC nominal (110–120V range), 50/60 Hz auto-sensing
Input Connection: NEMA 5-20P (10 ft. power cord)
Output Waveform: Pure Sine Wave
Output Receptacles: (8) NEMA 5-15/20R + (1) NEMA L5-20R
Transfer Time: 0 ms (Zero transfer time)
Form Factor: 2U Rack / Tower convertible
Dimensions (H × W × D): 3.5 in × 19.0 in × 17.0 in
Unit Weight: 47.6 lbs
Management Ports: USB, RS-232 (DB9), EPO port, optional SNMP card slot
