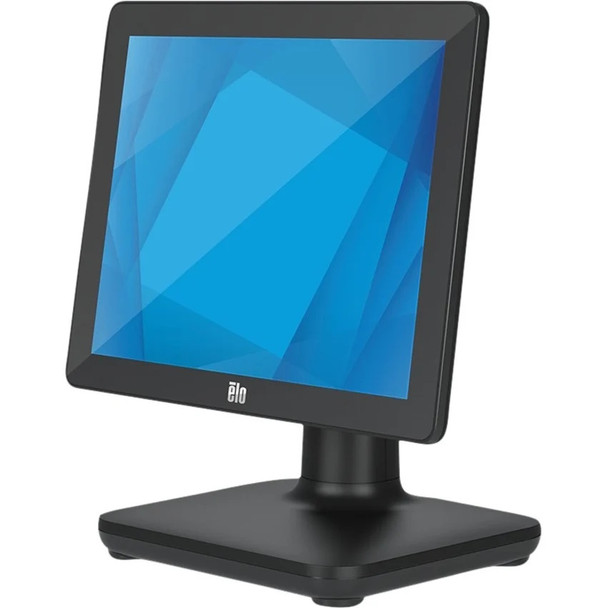

EloPOS System 15" All-in-One Touchscreen POS Terminal - Intel Core i5 - 8GB RAM - 128GB SSD - PCAP 10-Touch - I/O Hub Stand - Windows 10 IoT - Black - E932274

Bring modern sophistication, modular versatility, and retail-hardened stamina to your checkout counter with the EloPOS System 15-inch (E932274). Purpose-built for high-intensity commercial environments, this all-in-one point-of-sale terminal pairs a traditional, space-conscious 4:3 aspect ratio display with a powerful 9th Generation Intel Core i5 processor.

Equipped out-of-the-box with 8GB of DDR4 memory, a quick 128GB M.2 SSD, and Windows 10 IoT Enterprise LTSC, this unit arrives ready to anchor your primary point-of-sale workflow. The included heavy-duty I/O Hub Stand hides unsightly cables while offering extensive expansion ports to anchor your entire retail footprint. From fixed checkout lanes to self-service ticketing kiosks, the EloPOS system delivers a professional, retail-hardened engine built to survive continuous public interaction.

Product Features:

Powerful Core i5 Infrastructure: Powered by a desktop-grade Intel Core i5-9500TE vPro processor (up to 3.60GHz max turbo), providing the reliable computing speeds and hardware security needed for local payment platforms.
Zero-Bezel TouchPro® PCAP Touchscreen: Features a durable, edge-to-edge glass surface with projected capacitive 10-point multi-touch tracking. Includes an anti-glare finish to ensure effortless legibility under harsh commercial lighting.
Comprehensive Expansion I/O Stand: Reclaim your counter aesthetics. The heavy-duty stand acts as an integrated connectivity hub, supplying dedicated interfaces for cash drawers, printers, scales, and pin-pads.
One-Cable Customer Display Integration: Features full-function USB Type-C interface connectivity, allowing you to link an official Elo secondary customer-facing screen (like the 1302L) for touch, video data, and power over just a single, clutter-free cord.
Elo Edge Connect™ Ready: Designed with four micro-USB slots embedded into the sides of the display bezel, enabling you to effortlessly snap on plug-and-play accessories like MSR credit card swipers, barcode scanners, or biometric scanners.
Retail-Hardened Build: Constructed inside a splash-proof housing, the EloPOS chassis is rigorously tested to easily withstand the physical environment of standard public hospitality and retail nodes.

Technical Specifications:

Manufacturer Part Number (SKU): E932274
Processor: Intel® Core™ i5-9500TE (9M Smart Cache, up to 3.60 GHz with Intel Turbo Boost, Intel vPro Support)
Installed Memory: 8GB DDR4 SO-DIMM (2666 MHz, expandable up to 32GB)
Installed Storage: 128GB M.2 SATA Solid State Drive (SSD)
Operating System: Windows 10 IoT Enterprise LTSC 64-bit
Display Properties: 15.0" diagonal Active Matrix TFT LCD with LED backlighting (4:3 aspect ratio)
Native Resolution: XGA 1024 x 768 @ 60Hz
Screen Brightness: LCD Panel: 400 nits; TouchPro PCAP Surface: 340 nits typical
Touch Interface: 10-Touch Projected Capacitive (PCAP) with Anti-Glare treatment
Stand Connectivity Hub Ports:
3 x USB 3.0 (2 on I/O base, 1 on display edge)
2 x USB 2.0
3 x Powered USB ports (1 x 24V, 2 x 12V)
1 x Full-function USB Type-C
4 x Micro-USB 2.0 slots (peripheral mount edges)
2 x RJ45 Serial Interface Ports (RS-232)
1 x LAN RJ45 port (Gigabit Ethernet)
1 x 12V/24V Cash Drawer port (Epson pinout default)
1 x 3.5mm Headset audio jack
Internal Audio: Dual 2W integrated speakers
Wireless Connections: Wi-Fi 5 (802.11ac dual-band) + Bluetooth 5.0
Chassis Color: Black
Power Supply: External 24V DC / 180W Power Adapter Brick included
Warranty: 3-Year Manufacturer Limited Warranty
