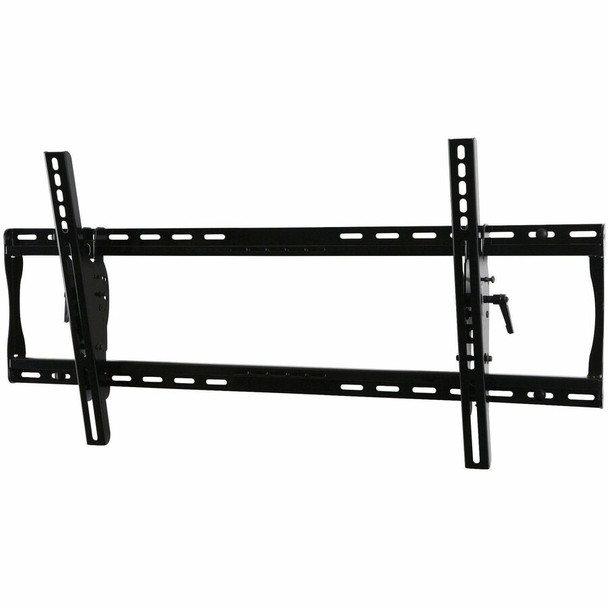

Peerless-AV Paramount Universal Tilt Wall Mount for 39" to 90" Displays - PT660

Mount extra-large flat-panel displays with confidence and precision using the Peerless-AV Paramount PT660 Universal Tilt Wall Mount. Designed for TVs and interactive panels ranging from 39 inches up to 90 inches and supporting up to 200 lbs (90.7 kg), this heavy-duty mount maintains a slim profile by positioning the display just 2.63 inches (67 mm) from the wall. Its smooth tilt functionality allows you to tilt the screen forward up to 15° or backward -5° using a ratcheting handle to eliminate glare and achieve optimal viewing angles in living rooms, boardrooms, or commercial venues.

Installation is simple and straightforward with Peerless-AV’s Hook-and-Hang system and Easy-Glide adaptors, allowing a single person to lift and attach the display securely onto the wall plate. The mount features IncreLok tilt technology to lock fixed tilt angles at 5° increments, preventing unwanted screen movement or tampering. Post-installation horizontal adjustment lets you shift the display up to 8 inches (203 mm) side-to-side along the wall plate rails for perfect wall centering.

Product Features:

Slim Low-Profile Depth: Keeps displays sitting just 2.63" (67 mm) off the wall for a clean, modern aesthetic.
Versatile Tilt Range: Adjust display angles from +15° forward to -5° backward using an easy-grip ratcheting handle to cut glare.
IncreLok Tilt Lock: Lock in tilt angles at 5° fixed intervals to deter tampering and maintain position stability.
Hook-and-Hang Installation: Easy-Glide display adaptors hook smoothly onto the wall plate for effortless single-person setup.
Post-Installation Centering: Offers up to 8" (203 mm) of horizontal display shift for ideal alignment.
Open Frame Wall Plate: Open frame access ports make cable management and junction box connections simple.

Technical Specifications:

Manufacturer: Peerless-AV
Series: Paramount™
Model: PT660
Screen Size Range: 39" to 90"
Weight Capacity: 200 lbs (90.7 kg)
Distance from Wall: 2.63" (67 mm)
Tilt Range: +15° / -5°
Max Mounting Pattern: Up to 800 x 400 mm VESA patterns
Color: Black
Mounting Surface: Wood studs (16" or 24" centers), concrete, cinder block, or metal studs (with optional fasteners)
