Raspberry

Raspberry Pi 3 Model B+ Single-Board Computer - 1GB RAM - Bluetooth - Wireless - HDMI

SKU:
RASPBERRY PI 3 B+
MPN:
PI 3 B+
Condition:
Used
Availability:
Should Ship in 1-3 Business Days.
Shipping:
Calculated at Checkout

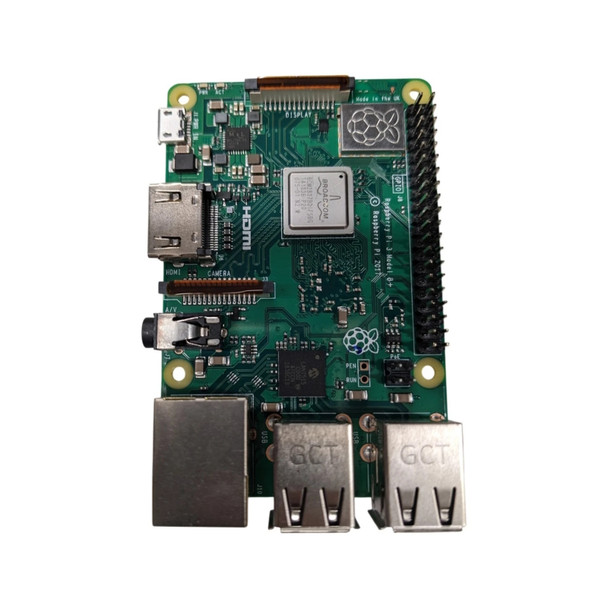

  • A top-down, full-frame studio shot of the top side of a green Raspberry Pi 3 Model B+ single-board computer. The circuit board is oriented vertically, showing its complex architecture of chips, connectors, and gold-plated mounting holes. Core Components and Labeling Processor: A prominent square Broadcom BCM2837B0 chip is centered, featuring a silver metal heat spreader for thermal efficiency. Wireless Module: To the upper right of the processor, a silver metallic shield embossed with the Raspberry Pi logo houses the dual-band Wi-Fi and Bluetooth hardware. Official Branding: White silk-screened text to the right of the processor reads "Raspberry Pi 3 Model B+" and "© Raspberry Pi 2017." Connectivity and I/O Top Edge: Contains a vertical DISPLAY ribbon cable connector. Left Side: Features a micro-USB power input, a full-size silver HDMI port, a vertical CAMERA ribbon cable connector, and a black 3.5mm audio/composite video jack. Bottom Edge: Includes a silver metallic RJ-45 Ethernet jack and two stacked pairs of dual USB 2.0 Type-A ports (totaling four ports) with silver housings stamped "GCT." Right Side: A 40-pin GPIO male header strip with black pins runs along the entire length of the board, accompanied by a small 4-pin PoE header near the bottom. Technical Details The green PCB is populated with numerous small surface-mount components, including resistors and capacitors. Small white status indicator LEDs labeled "PWR" and "ACT" are visible in the upper-left corner. The entire unit is isolated against a clean, solid white background.
  • An eye-level, close-up studio shot focusing on the input/output ports of a Raspberry Pi 3 Model B+. The green circuit board is positioned to showcase the metallic connectivity hardware along the front edge. Visible Ports and Features: Ethernet Port: On the left, a silver metallic RJ-45 Ethernet jack is prominent, featuring two small indicator LEDs integrated into the bottom corners of the port. USB Ports: To the right of the Ethernet jack are two stacked pairs of USB 2.0 Type-A ports (four ports total). The silver metal housings are stamped with the "GCT" manufacturer logo. Background Detail: The image uses a shallow depth of field, blurring the main processor with its silver heat spreader, the 40-pin GPIO header on the right, and the HDMI port in the distance. PCB Markings: Small white silk-screened labels and copper contact points are visible on the green board near the base of the connectors. The device is isolated against a solid, seamless white background.
  • A side-angle, eye-level studio shot of a Raspberry Pi 3 Model B+ single-board computer, showcasing the various ports and vertical components along the board's edge. Key Features and Connectivity: Primary Ports: From left to right along the front-facing edge, the image shows a silver micro-USB power input, a full-size silver HDMI port, a vertical CAMERA ribbon cable connector, and a black 3.5mm audio/composite video jack. Network and Data: On the right edge, the silver metallic housings for the RJ-45 Ethernet port (labeled "EDAC") and two stacked pairs of USB 2.0 ports are visible. Core Components: In the background, the main Broadcom processor with its silver metal heat spreader is visible, along with the silver metallic shield for the wireless module and the 40-pin GPIO header. PCB Layout: The green circuit board is populated with various surface-mount resistors, capacitors, and status LEDs (labeled "PWR" and "ACT" on the far left). The unit is isolated against a solid white background, emphasizing the low-profile, compact design of the hardware.
  • A close-up, angled studio shot focusing on the main components and labeling of a green Raspberry Pi 3 Model B+ single-board computer. Key Details Visible: Main Processor: A prominent square Broadcom BCM2837B0 chip is centered, featuring a silver metal heat spreader for improved thermal management. Wireless Module: To the left of the processor is a silver metallic shield embossed with the Raspberry Pi logo, housing the dual-band wireless LAN and Bluetooth components. Labeling: White silk-screened text above the processor reads "Raspberry Pi 3 Model B+" and "© Raspberry Pi 2017," accompanied by a small white raspberry logo to the right. GPIO Pins: A 40-pin header with black male pins runs along the top edge, labeled "GPIO" at the left. A smaller 4-pin PoE (Power over Ethernet) header is visible nearby. Connectors: The "DISPLAY" ribbon cable connector is on the left edge, the "HDMI" port labeling is at the bottom, and the metallic USB/Ethernet port housings are partially visible on the right. Controller Chip: A smaller black square LAN7515 chip, which handles Ethernet and USB connectivity, is positioned to the right of the main processor. The image is sharp and clear, presented against a clean white background.
  • A top-down, full-frame studio shot of the underside of a green Raspberry Pi 3 Model B+ single-board computer. The green PCB is populated with silver solder points, copper traces, and various surface-mount components. Key Features and Markings: Central Chip: A black Elpida memory chip is located in the center of the board. MicroSD Slot: A silver metallic microSD card slot is positioned on the right edge, labeled "MICRO SD CARD." Logos and Compliance: The Raspberry Pi logo is printed in white silk-screen in the center. Regulatory markings including the FCC and CE logos are visible, along with IDs such as "FCC ID: 2ABCB-RPI3BP." Solder Points: Large groups of silver solder points for the USB ports, Ethernet jack, and 40-pin GPIO header are visible around the edges. Labeling: A small white square sticker with a QR code and technical text is adhered near the top center. Mounting: Four gold-plated circular mounting holes are located at the corners of the board.
$39.99

Out of stock

Frequently bought together:

Description

The Raspberry Pi 3 Model B+ is the final evolution of the Raspberry Pi 3 range, providing a powerful, credit-card-sized solution for everything from industrial applications to hobbyist DIY projects. It maintains the same mechanical footprint as the original Raspberry Pi 1 Model B+ and Raspberry Pi 2 Model B, ensuring compatibility with existing cases and accessories.

Product Specifications:

The B+ model introduces significant improvements in processing speed and networking capabilities compared to its predecessor:
Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz (a 200MHz increase over the standard Model B).
Memory: 1GB LPDDR2 SDRAM.
Wireless Connectivity: Dual-band 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN.
Bluetooth: Bluetooth 4.2 and BLE (Bluetooth Low Energy) for improved peripheral connectivity.
Ethernet: Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps).
Power over Ethernet (PoE): Support via a separate PoE HAT.

Interface and Connectivity:

Designed for versatility, the board includes a wide array of physical inputs and outputs:
GPIO Header: 40-pin horizontal header for hardware prototyping and sensor integration.
Video & Audio: Full-size HDMI port and a 4-pole stereo output/composite video port.
USB Ports: 4x USB 2.0 ports for keyboards, mice, and external storage.
Storage: MicroSD card slot for loading operating systems (such as Raspberry Pi OS) and data storage.
Camera & Display: 1x CSI camera port and 1x DSI display port for connecting official Raspberry Pi peripherals.
