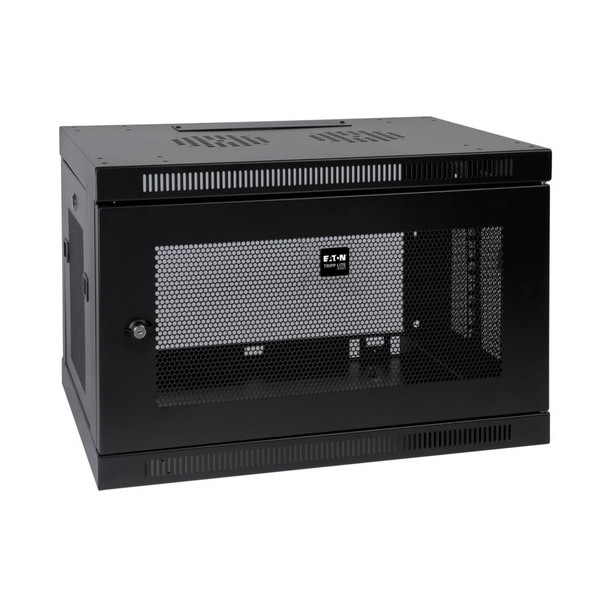

Tripp Lite SmartRack 9U Wall-Mount Rack Enclosure Cabinet - SRW9U

Organize and secure your standard 19-inch rack-mount equipment in network wiring closets, back offices, retail locations, and classrooms with the Tripp Lite SRW9U SmartRack 9U Wall-Mount Rack Enclosure Cabinet. Designed for spaces with limited floor space, this heavy-duty, wall-mountable steel enclosure houses up to 9U of IT, network, telecom, and A/V gear while keeping cables tidy and hardware protected.

Constructed from heavy-duty rolled steel with a durable black powder-coated finish, the SRW9U supports up to 200 pounds of equipment. It features a locking, reversible front door and locking, removable side panels to prevent unauthorized access while maintaining convenient serviceability. Perforated panels promote efficient passive airflow to keep critical switches, patch panels, and small servers operating at optimal temperatures.

Product Features:

Space-Saving 9U Form Factor: Mounts securely to the wall to free up floor space in compact server rooms, retail back offices, network closets, and classrooms.
Heavy-Duty Weight Capacity: Sturdy, cold-rolled steel construction safely accommodates up to 200 lbs (90.7 kg) of rackmount IT, networking, audio/video, and telecom equipment.
Locking Security: Reversible front door and removable side panels lock securely with the included keys to guard against equipment tampering, theft, and unauthorized access.
Optimized Ventilation: Generous front and side perforations support continuous passive airflow, with pre-cut top and bottom mounting spots for optional standard 120 mm cooling fans.
Flexible Equipment Mounting: Fully adjustable vertical mounting rails with square holes accommodate standard 19-inch rack equipment with mounting depths from 3 to 16.5 inches.
Streamlined Cable Management: Top and bottom cable access ports feature removable covers for simple, clean routing of power and network cables.
Ships Fully Assembled: Pre-assembled for rapid installation with a detachable wall-mounting bracket and included M6 rack-mounting hardware.

Technical Specifications:

Manufacturer: Tripp Lite / Eaton
Model: SRW9U
Rack Height: 9U
Weight Capacity (Stationary): 200 lbs (90.7 kg)
Mounting Depth Range: 3" to 16.5" (7.62 cm to 41.91 cm)
Rack Equipment Compatibility: Standard 19" Rackmount
Enclosure Type: Wall-Mount Cabinet
Color / Finish: Black Powder Coat
Cooling Support: Passive ventilation with punch-outs for optional user-supplied 120 mm fans
Dimensions (H × W × D): 19.88" × 23.62" × 17.72" (50.5 cm × 60.0 cm × 45.0 cm)
Unit Weight: 37.5 lbs (17.0 kg)
Certifications: EIA-310-E, IEC 60297-3-100, RoHS
