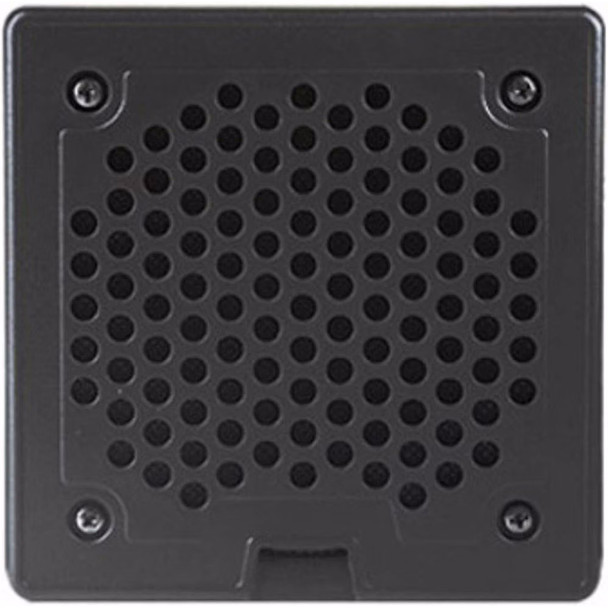

Panasonic Attune Speaker and Microphone - WX-CS560

Optimize drive-thru clarity and reliability with the Panasonic WX-CS560 Low-Profile Speaker and Microphone, engineered specifically for Panasonic Attune and Attune II wireless communication systems. Combining dual-function performance with advanced noise-canceling capabilities, this compact unit cuts through high ambient background noise like vehicle engines to deliver crisp, intelligible customer service interactions in fast-paced commercial environments.

Product Features:

Dual-Function Design: Operates flexibly as either an outdoor speaker or a microphone within your drive-thru order post configuration.
Advanced Noise Cancellation: Built with integrated vibration-canceling foam and specialized wind-filtering technology to eliminate environmental distortion and background engine rumble.
Low-Profile Form Factor: Compact 4.5-inch enclosure easily integrates into standard outdoor menu boards and order posts.
Rugged Durability: Commercial-grade, black plastic-molded housing built to withstand severe outdoor weather elements and high-impact physical stress.

Technical Specifications:

Manufacturer: Panasonic
Model / SKU: WX-CS560
Compatibility: Panasonic Attune and Attune II Drive-Thru Systems
Dimensions: 4.5 inches x 4.5 inches x 2.75 inches (114 mm x 114 mm x 70 mm)
Weight: Approximately 2.6 lbs (1.2 kg) with mounting brackets
Speaker Frequency Response: 250 Hz to 15,000 Hz
Speaker Sound Pressure Level: 90 dB (1 W, 1 m)
Speaker Impedance: 8 Ohms
Power Capacity: 5 W (RMS)
Microphone Frequency Response: 100 Hz to 6,000 Hz
Microphone Sensitivity: -52 dB
Operating Temperature: -4°F to 122°F (-20°C to +50°C)
Cabling & Connections: Approximately 2700 mm two-core shielded wire with a pre-attached Euro-type 3P connector
