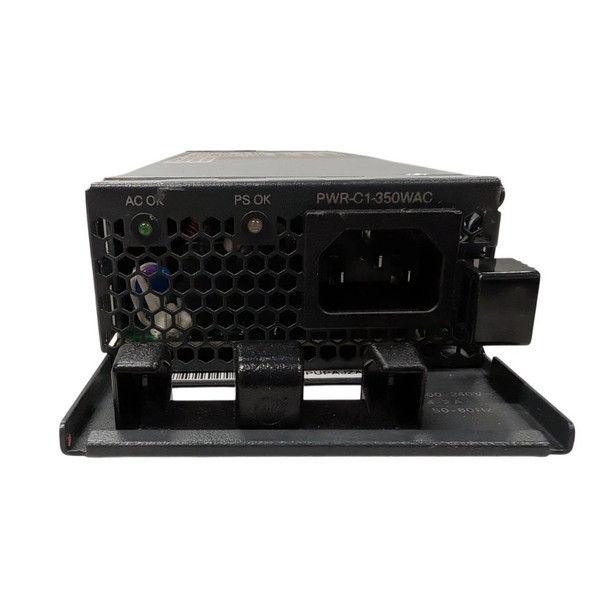

Cisco Catalyst 350W AC Config 1 Switch Power Supply - PWR-C1-350WAC

Ensure uninterrupted business continuity and maximum network runtime with the enterprise-class Cisco PWR-C1-350WAC hot-swappable AC power supply module. Tailored as a principal power source or an essential secondary unit for 1+1 redundant configurations, this high-efficiency module safeguards your critical data architecture against devastating sudden power loss.

The PWR-C1-350WAC drops seamlessly into the rear power supply bays of your data-oriented Cisco infrastructure. It provides clean, autoranging 350W AC power delivery globally without requiring manual switches or transformers. Engineered for space-conscious, low-draw deployment footprints, it is optimized exclusively for non-PoE network designs.

Product Features:

Hot-Swappable Performance: Minimize downtime by replacing or upgrading network power directly on the fly—no switch reboot or service interruptions required.
Global Power Compatibility: Equipped with auto-ranging inputs supporting voltages from 100V to 240V AC (50-60Hz), making it perfectly suited for variable grids across global branch facilities.
Advanced Dissipation & Cooling: Integrates an onboard cooling fan and sophisticated thermal engineering to efficiently manage up to 1194 BTU/hr, protecting infrastructure from overheating strains.
Redundancy-Ready Execution: Deploy standard $1+1$ dual configurations alongside an active secondary C1 supply to distribute current load and establish dual-grid tolerance.

Technical Specifications:

Total Output Capacity: 350W Input Voltage Range: 100 to 240 VAC (Autoranging)
Input Current Draw: 4–2 A max
Output Ratings: -56 VDC @ 6.25 A
Heat Dissipation Range: 1194 BTU/hr maximum output
Connector Core Type: IEC 60320 C14 interface slot
Physical Dimensions: 1.58" x 3.25" x 12.21" (Height x Width x Depth)
Module Weight: 2.6 lbs (1.2 kg)

Hardware Compatibility:

This power supply is built exclusively for specific data-only models within the enterprise Cisco Catalyst switch matrix:

Cisco Catalyst 9300 Series: C9300-24T, C9300-48T
Cisco Catalyst 9300L Series: C9300L-24T-4G, C9300L-24T-4X, C9300L-48T-4G, C9300L-48T-4X
Cisco Catalyst 3850 Series: Select legacy configurations
