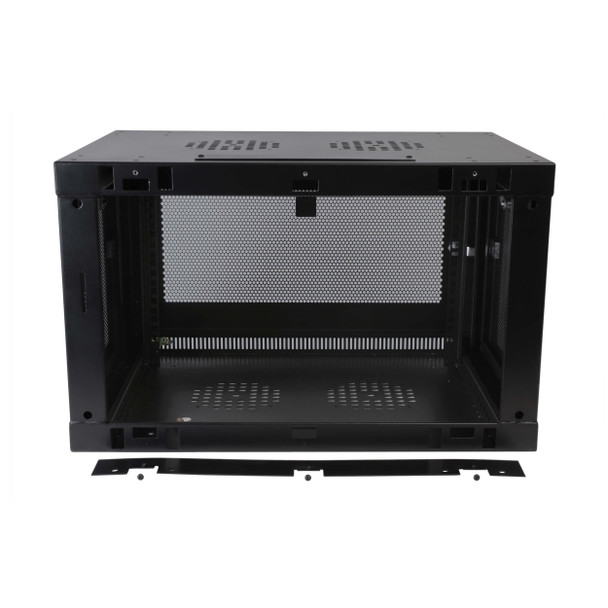

The Tripp Lite SRW6U is a low-profile, 6U wall-mount rack enclosure designed to secure and organize 19-inch rackmount equipment in spaces with limited floor area. The sturdy steel cabinet features a black powder-coated finish and is ideal for network wiring closets, classrooms, retail locations, and back offices. It arrives fully assembled for quick installation.
Product Features:
Space-saving design: The low-profile cabinet extends less than 18 inches from the wall, making it suitable for areas with limited floor space.
High weight capacity: It has a maximum stationary load capacity of 200 lbs (90.7 kg).
Enhanced security: A reversible front door and removable side panels lock securely to prevent unauthorized access, tampering, or theft. This helps companies meet Payment Card Industry Data Security Standard (PCI DSS) compliance.
Optimal airflow: Vented doors, side panels, and top and bottom panels allow for generous flow-through ventilation, which keeps equipment cool and functioning efficiently.
Adjustable mounting rails: The front and rear vertical rails can be adjusted in 7/8-inch increments to accommodate equipment up to 16.5 inches deep.
Versatile cable management: The cabinet includes top and bottom ports with removable covers to simplify cable routing.
Flexible installation: While designed for wall mounting, the enclosure can also be converted into a mobile rack using Tripp Lite's optional SRCASTER caster kit, sold separately.
Product Specifications:
Rack height: 6U
Rack width: 19 inches
Maximum device depth: 16.5 inches (419 mm)
Maximum load capacity: 200 lbs (90.7 kg)
Unit dimensions (H x W x D): 14.5 x 23.63 x 17.5 inches (368 x 600.2 x 445 mm)
Unit weight: 29 lbs (13.2 kg)
Material: Heavy-duty steel
Color: Black
Certifications: EIA/ECA-310-E, IP20, RoHS, UL
