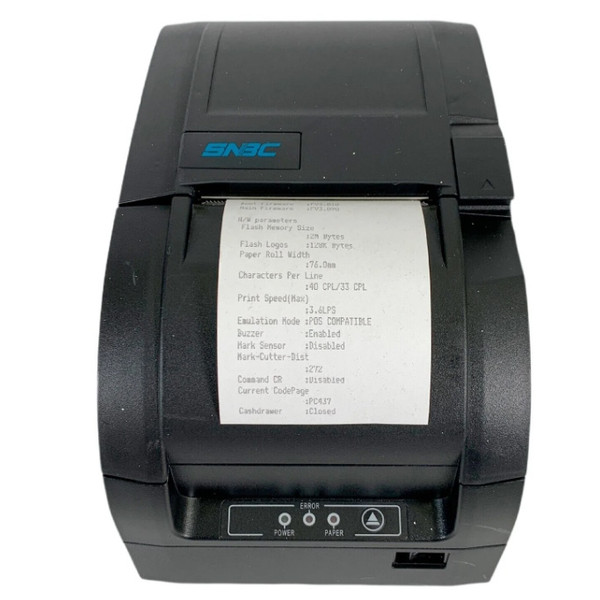

The SNBC BTP-M300 (Ethernet Model) is a high-performance, 9-pin serial impact dot matrix printer designed for demanding, high-volume, and, in particular, kitchen, bar, and point-of-sale (POS) environments. Known for its reliability, this printer supports two-color, black/red printing for receipts and requisitions, featuring an Ethernet (LAN) interface for easy network integration, along with standard on-board USB. The BTP-M300 is an excellent, cost-effective, and durable alternative to Epson TM-U220 printers, often used for printing kitchen orders, guest checks, and archival documents.
Product Features:
Rugged Impact Printing: Uses ERC-38 ribbons to print on standard bond paper, ideal for kitchens where heat can affect thermal printers.
Networking & Connectivity: Features an integrated Ethernet port (RJ-45) for reliable network printing, typically with USB as a secondary interface.
Fast & Reliable: Prints at a swift 4.7 lines per second. It is equipped with a high-performance auto-cutter rated for 1.8 million cuts.
User-Friendly Design: Utilizes "drop-and-print" paper loading and "pull" technology to prevent paper jams.
Internal Power Supply: Features a built-in power supply, eliminating the need for bulky, messy external power bricks.
Versatile Mounting: Built-in capability for wall mounting.
Technical Specifications:
Print Method: 9-Pin Serial Impact Dot Matrix
Paper Width: Adjustable; 80 / 76 / 69.5 / 57.5mm ± 0.5mm
Interface: Ethernet (LAN) + USB (often bundled as a "Triple Interface" model with Serial)
MCBF: 18,000,000 Lines
Characters per Line: 33/35 (Font A), 40/42 (Font B)
Cutter Life: 1,800,000 Cuts
Dimensions: 6-1/4" W x 6" H x 9-1/2" D
Emulation: ESC/POS
